56F8335_8135|Digital Signal Controllers

NXP^® 56F8335 and 56F8135 digital signal controllers belong to the 56800E core-based DSC family. They combine digital signal processing and microcontroller functionalities on a single chip, with a flexible set of peripherals.

On-chip integration and ease of implementation help to speed development, lower component count, and significantly reduce system cost
Simplifies designs while promoting compliance with safety regulations
Supported by robust development tools to simplify and accelerate time-to-market

データ・シート

リファレンス・マニュアル

製品詳細

ブロック図

56F8335/8135 Digital Signal Controller

図を取得する PDF

Features

On-chip memory includes high-speed volatile and nonvolatile components:
- 64 KB of program Flash
- 4 KB of program RAM (8335 device)
- 8 KB of data Flash (8335 device)
- 8 KB of data RAM
- 8 KB of boot Flash
Up to 60 MIPS at 60 MHz execution frequency
JTAG/EOnCE for unobtrusive real-time debugging
Temperature sensor
FlexCAN module
EEPROM emulation capability
Four 12-bit ADCs
Two serial communication interfaces (SCIs)
Up to two serial peripheral interfaces (SPIs)
Two dedicated external interrupt pins
Integrated low-voltage interrupt module
TTL-compatible digital inputs

購入/パラメータ

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

設計・リソース

デザイン・ファイル

完全な内訳を受け取ります。 製品の設置面積などについては、 eCad ファイル.

ハードウェア

クイック・リファレンスボードタイプ.

1-5 の 7 ハードウェア提供

エミュレータ、プローブ、プログラマ
Universal Multilink開発インターフェース
アクティブ

UMultilink
エミュレータ、プローブ、プログラマ

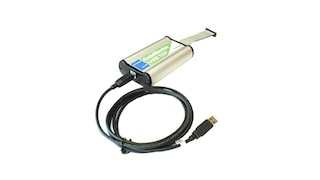

USB TAP for ONCE DSC
